MODEL MSB

MSB7-60+cover

7mm to 9mm pitch fine monofilament and multifilament

MSB_Specifications

Local Assembling Available

Overview

1. High-Cost-Performance Net Machine

In 1998, we, Amita, introduced the world’s the first local assembly net machine Model NSB7-40.
This trial has been very well received by our customers and has resulted in selling more than 300 sets of netting machines including repeated orders within 6-year period. Based on this experience, we have thoroughly studied the Local assembly status and successfully developed the fine-pitch net machines with the helped of Indian Engineer.

2. High Speed and High Stability

  • The lower hook stroke cam, lower hook rail up & down cam and lower hook rail have modified and the movement of the lower hook frame became smoother. Thus vibration of lower hook frame improved during high-speed operation.
  • Percentage of completion for loop making has been improved and High-speed stability has been progressed very much by modification of link mechanism for reed movement.

3. High Production and High Quality

A)New Plastic Shuttle
Amita now has over 30 years of experience with shuttles made from glass-fiber-reinforced nylon. The shuttle’s shape has been optimized over the years. Twines pass smoothly under the shuttles without causing them to jump, resulting in quiet and efficient operation.
B)New Bobbins
Several types of bobbins are offered allowing for greater flexibility in twine range. φ185mm for 7mm pitch (ID 125mm dia) bobbin is most suitable for producing thinner netting. φ185mm for 7mm(ID 90mm dia) bobbin is dramatically increasing capacity.
C)New Auto Warp Supply System
The new innovative warp supply system automatically forwards the amount of warp twine required from the warp rollers. This system delivers more stable and constant warp supply.
D)The whole lot bobbin change system
The whole lot bobbin change system can be replaced with loaded ones in a short time.
E)Stable Loop Making(Reed Plate)
The loop making parts are lighter in weight. Lighter parts enable smooth and gentle twine handling. The optimized mechanical linking of these parts delivers stable performance at high speeds.

4.Easy Operation

We provide figure adjustment point by gauge setting, enhancing and simplifiying opration of the net machine.

A) New Weft Slide and Sypply Gauge.
New weft slide gauge is employed to fine adjustment for weft supply. And we can be keep track of the exact numbers by gauge.
B)Constant Knot Tightening Position
Movement of the Knot-Tighening Lever and Knot-Tightning Pipe is stabilized to start form a constant location by Knot-Tightning Brake. This is very important for warp supply and knot tightening movement.

5.Easy Maintenance

Well-experienced technician only could adjust the machine conventionally. Now adjustment points are digitalizing and anybody will be able to adjust the machine easily. (The test of digitalizing is making progress on prototype MSB 7-50 machine.)

  1. Most of user mainenance points can be easily adjusted by gauge setting instead of tools, thus enhancing and simplifiying opration of the net machine.
  2. Most of adjustment points switch to outside of frame. The machine is designed for easy adjustment.

Details

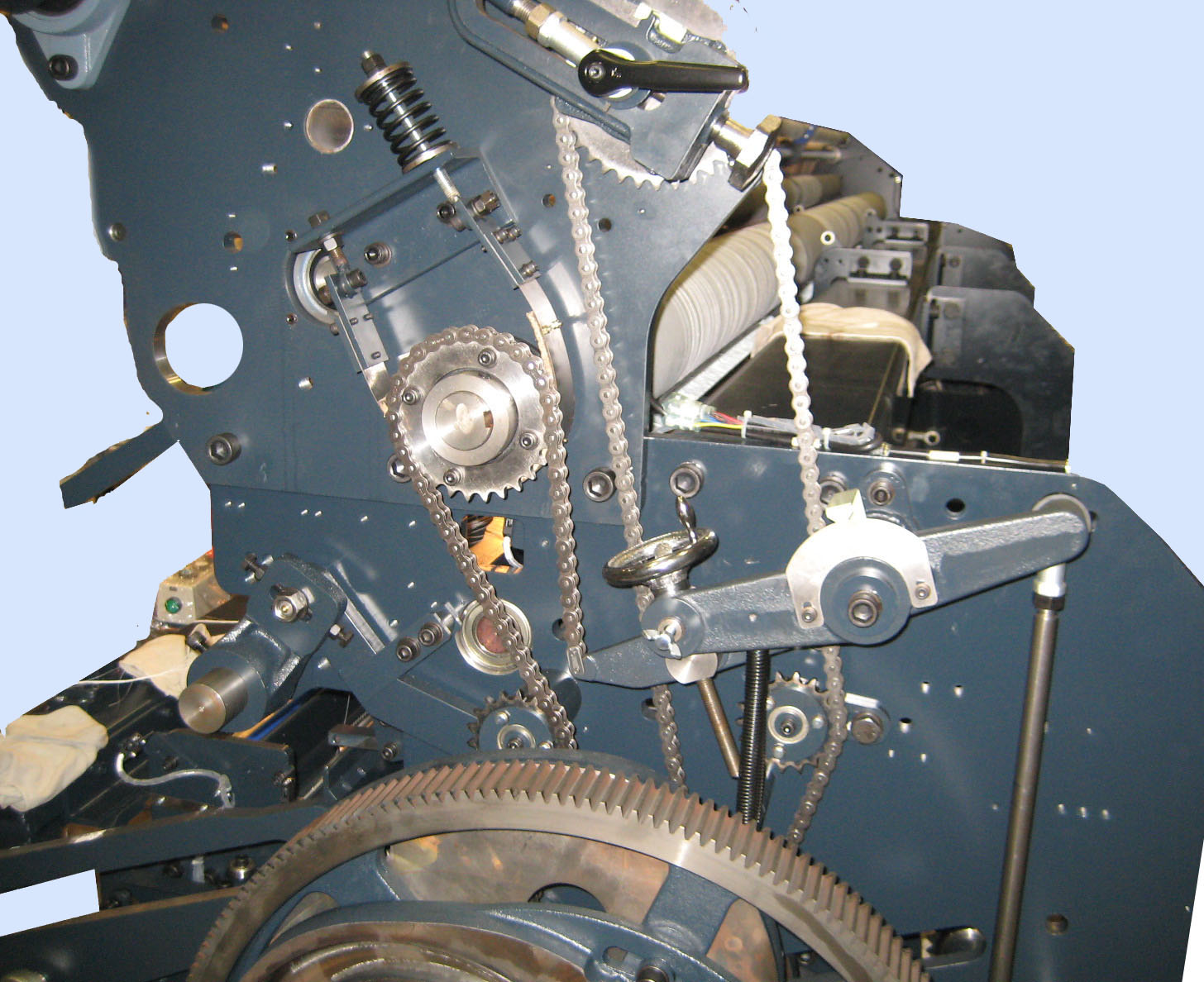

Auto Warp Supply System

Auto Warp Supply

When the mesh size is changed the warp supply automatically increases (or decreases) accordingly. This feature increases the net machine overall productivity while simplifying overall operation.

Belt Drive

Belt-Drive[1]

The main motor drive system is changed to belt type instead of rolling chain. The belt drive is vibration free, rotates smoothly and the noise level is significantly low. Also it can reduced the shake of machine during the inching operation.

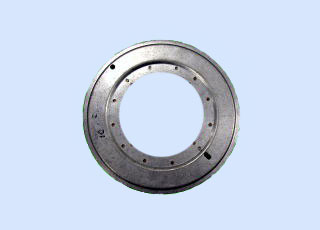

Bobbin

bobbin[1]

The center bore size of the new bobbin is made bigger than our regular bobbins. Hence the weight of the bobbin is reduced as well as the winding tension is optimized. Generally the winding tension in a bobbin gradually differs from the inner turn to outer turn. The ratio of tension difference in the new bobbin is 1:1.4 that is considerably negligible. So, the supply tension from the bobbin is almost constant from the full bobbin to empty bobbin. Thus Quality of netting have been improved extreamely.

Control Panel

The electric switches and circuits are up-to-date, modern and easy to maintain. The displays show current and total rows knit. A third readout, monitoring the net machines looming speed, is available as an option.

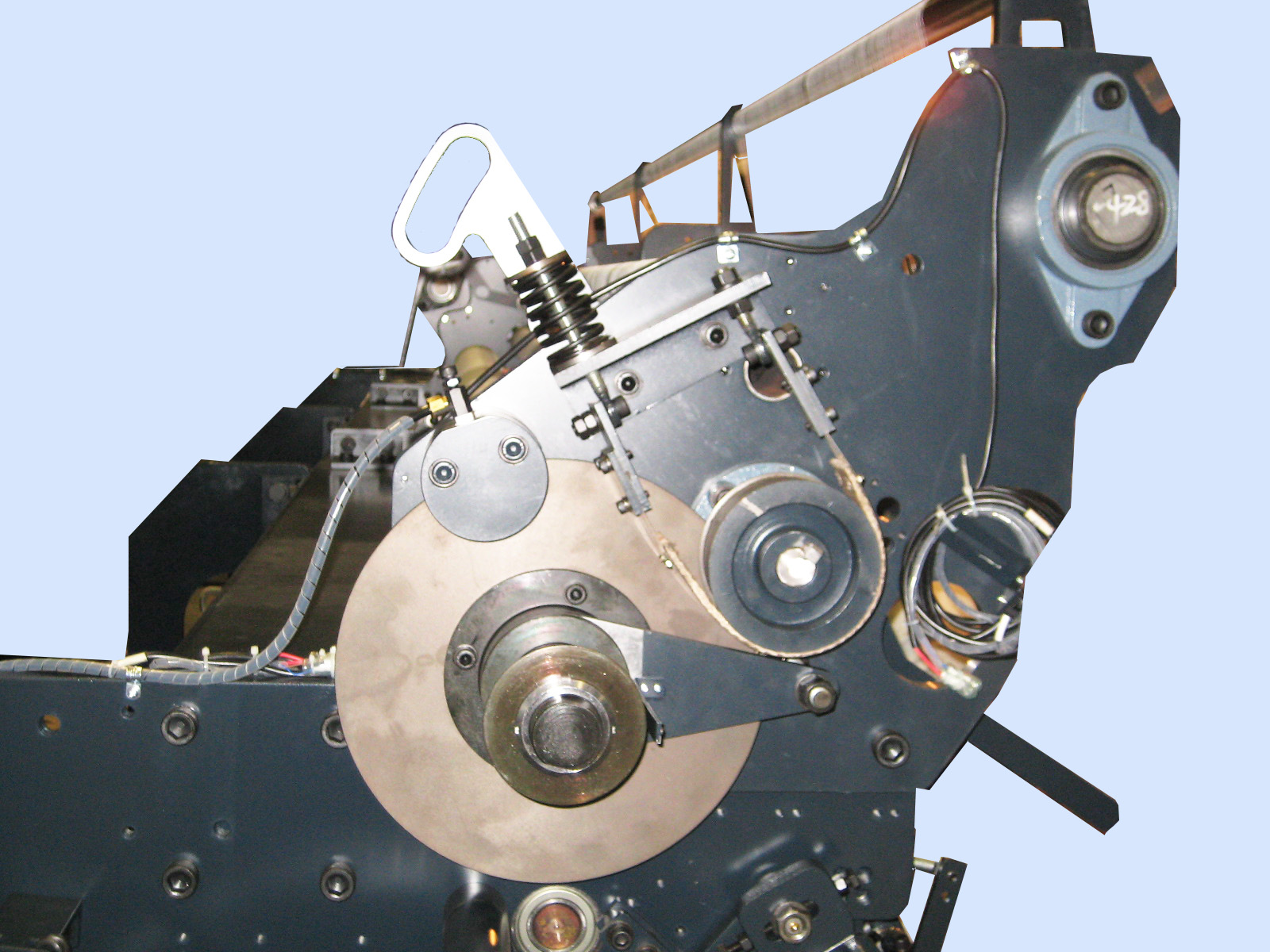

Constant Brake

Brake

This brake constantly supply warp twine

Easy Adjustment

easy-adjustment[1]

The machine is designed to have easy access for the operators and maintenance personnel’s from all the directions. Both the side structure of the machine and the rear portion is opened and easy to access.

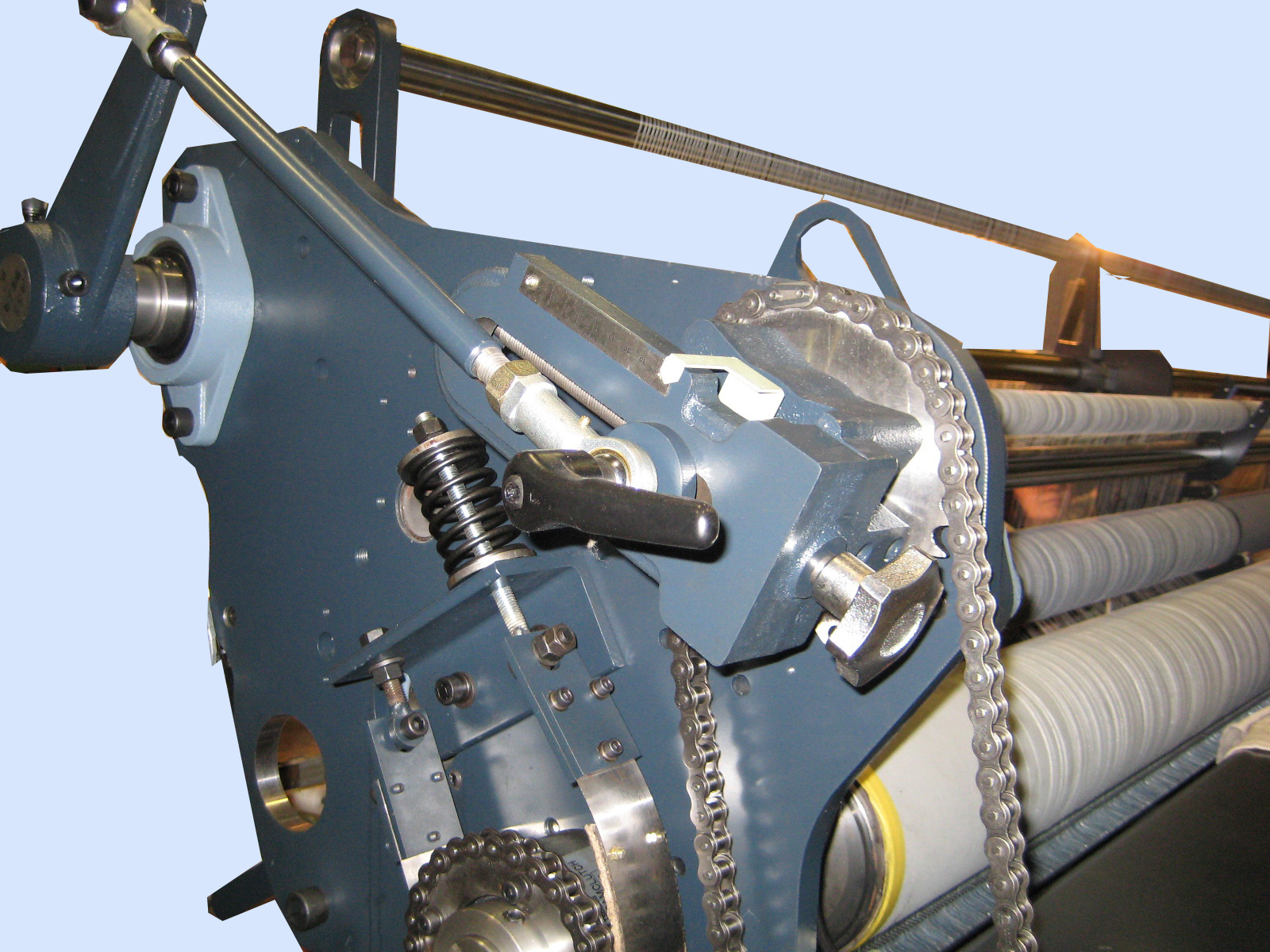

Easy Adjustment by Gauge Setting

Easy Adjustment

Spring with Gage

Gage[1]

  • Simplified for adjustment points and figure out by numerical date for adjustment points.
  • Speedy adjustment points and figure out by numerical data for adjustment points.
  • Easy changing for depth and twine of net to be shortening idle time.

Even Warp Tension

Even-Tension[1]

The warp roller covering is upgraded to felt type roller covering. Felt type materials are soft flexible in nature. Thus they provide even twine-tension on the entire warp rollers. All the fixed twine guide pipes are now upgraded to rolling guide pipes. So, this system reduced friction between the twine and the pipes. Thus constant tension is maintained on these pipes too.

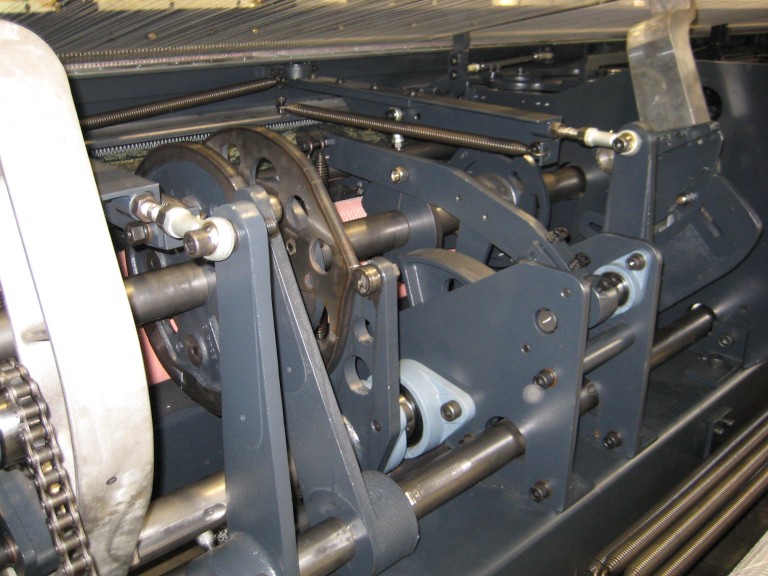

Knot Tightening Brake

IMG_1774

Movement of the knot-tightening pipe is stabilized to start from a constant location. This improvement insures an even knot tightening regardless of changes in the weather, like humidity and temperature. The strength of knot -tightening can be adjusted by gauge movement.

Knot Tightening Lever

KT

Knot Tightening Lever can adjust four positions.

Lower Hook

A special nitration treatment, more resistant than hard chrome, has been applied to the stainless steel (JIS SK) hooks to insure high durability.

Lower Hook Frame

Lower-Hook-Frame

The lower hook frame is supported by middle supports. This system results in much less deflection of the frame, without increasing its weight, for smoother travel of the lower hooks. The life of the mechanism driving the lower hooks is prolonged.
The weight of the lower hook frame is significantly reduced leading to smoother movement and less vibration.

Lower Hook Rail

lower-hook-stroke-rod

The redesigned lower hook rail is of a one-piece design and requires no adjustment. The rail is angled to facilitate the smooth release of warp twines from the lower hooks. In addition, large bearings are used to improve performance and insure consistency of the lower hook movement.

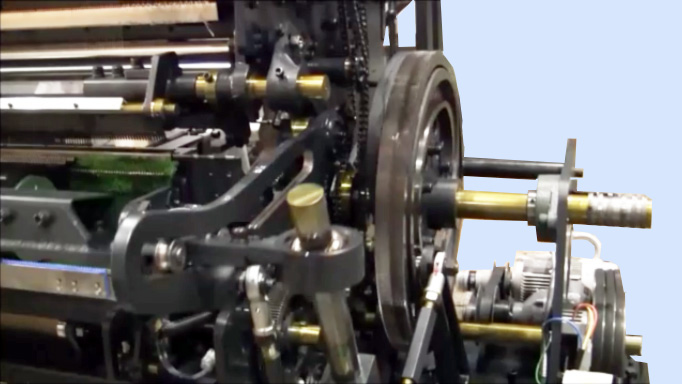

Lower Hook Stroke Rod

Lower-Hook-Stroke-Rod(MSB)

The lower hook stroke rod is made of a solid piece of steel (JIS SS400), instead of bolted pieces. The length of the new stroke rod is adjustable with turnbuckles. This new system results in a stronger stroke rod and accurate, yet simple, adjustment of the lower hook movement.

Mesh Forwarding(Gauge Movement)

Mseh-Forward[1]

Mesh forwarding supply can be easily adjusted by gauge setting, thus enhancing and simplifying operation of the net machine.

Safety Lock

Switch[1]

When activated this feature makes it impossible to operate the net machine. This lessens the chance that the net machine will experience damage as a result of untimely operation, and is another feature geared towards protecting your operators from undue harm.

Shuttle

shuttle

The outer shape of the new shuttle is specially designed to handle fine twines. This shape reduces friction considerably and helps the twine to pass gently under the shuttle. As a result the improved net quality and stable machine performance is obtained.

Spring Brake with Gauge

spring-brake-with-gauge

Spring with Gage

Spring brake with gauge is easy to adjust warp supply.

Stable Loop Making (Reed Plate)

To allow for high speed operation the reed angle has been lightened by using aluminum. Nonetheless, the reed plate is made of steel to insure long life and reliably.

Twine Separator

Redesigned so that its motion always follows a guide. The stainless steel (JIS SUS304) twine separator is quiet and accurate. In the unlikely event that the twine separator fails, it retreats to the vertical position. Thus the upper hooks are not damaged when the twine separator moves towards them.

Upper Hook

Specifically constructed to insure the most suitable shape and design, these stainless steel hooks with special nitration treatment insure long durability.

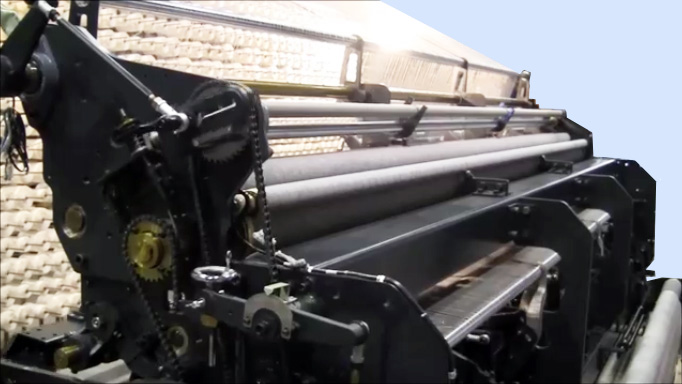

Warp Rollers

Warp-Roller[1]

The warp rollers have been repositioned for simplified threading. The diameter of main roller has been changed from 6″ to 8″ and the composition of the rollers are 8″, 6″, 6″, 4″. Thus, proper tension is maintained along the entire length of the roller system.

Warp Tension Shutter System

Improvements were made to the warp tension springs. The system has been upgraded to a warp tension shutter system, in which are very difficult to break.

Weft Supply(Gauge Movement)

Gage[1]

Weft supply can be easily adjusted by gauge setting, thus enhancing and simplifying operation of the net machine.
